Pneumatic Cylinder Sensor Magnets

Magnets and magnetic assemblies for cylinder position switches, piston sensing, and automation equipment feedback.

Target Buyer:Best for automation OEMs and cylinder manufacturers integrating magnetic position feedback.

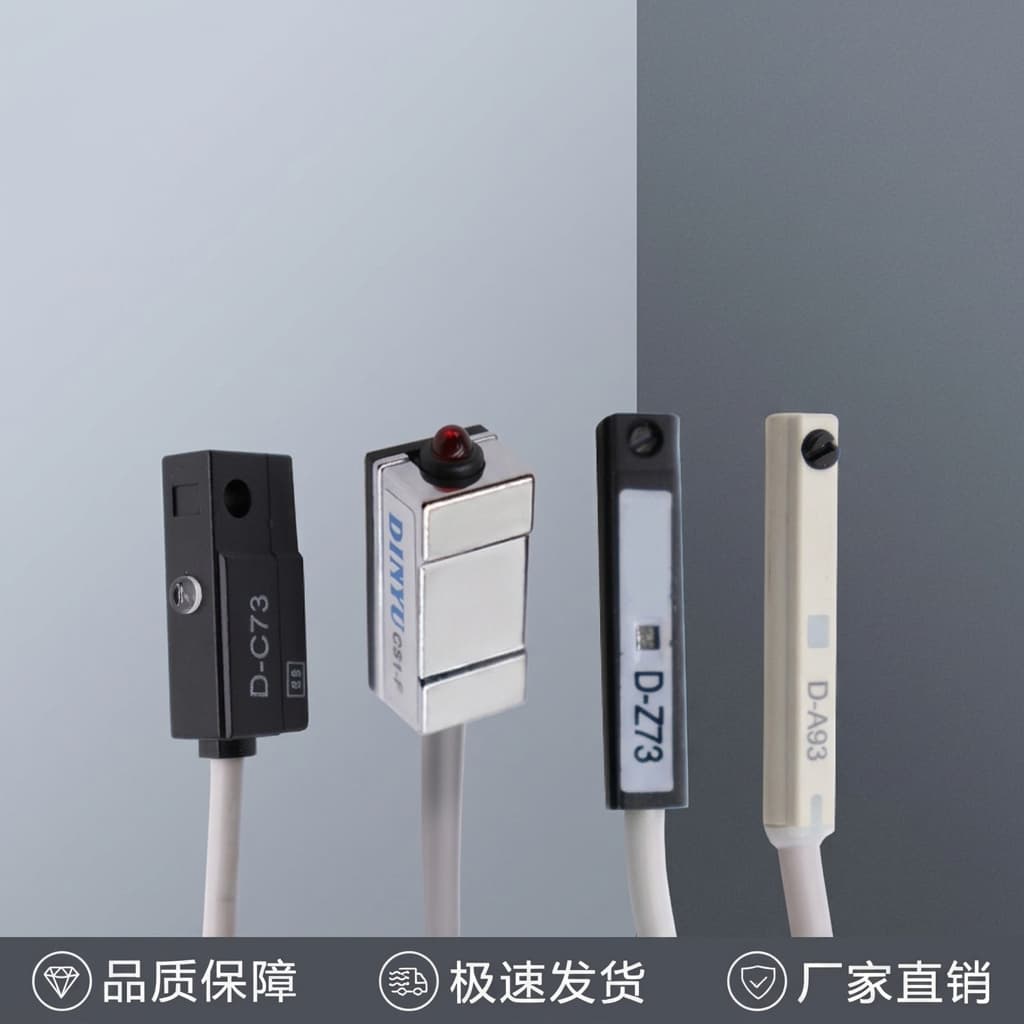

Pneumatic Cylinder Sensor Magnets application reference selected from the sensor magnet image library.

Solution Highlights

Match magnet type to piston geometry, cylinder wall, and sensor mounting distance
Review retention method under vibration, pressure cycles, and operating temperature
Control magnet orientation for consistent sensor actuation
Align sample validation with the buyer-side cylinder and switch combination

Evaluation Metric	Typical Range	Buyer Relevance
Sensing distance through cylinder wall	Defined by cylinder and sensor combination	The magnet must actuate the external sensor through the mechanical stack-up.
Retention durability	Project-defined cycle and environment	Loose or shifted magnets cause intermittent cylinder position feedback.
Polarity direction	Drawing-defined orientation	Cylinder sensors require the magnetic field to reach the switch in the expected direction.

Sensor misses through the cylinder wall: Validate magnet grade, size, wall thickness, and sensor model together.
Magnet movement after cycles: Review retention method and pilot testing before full release.

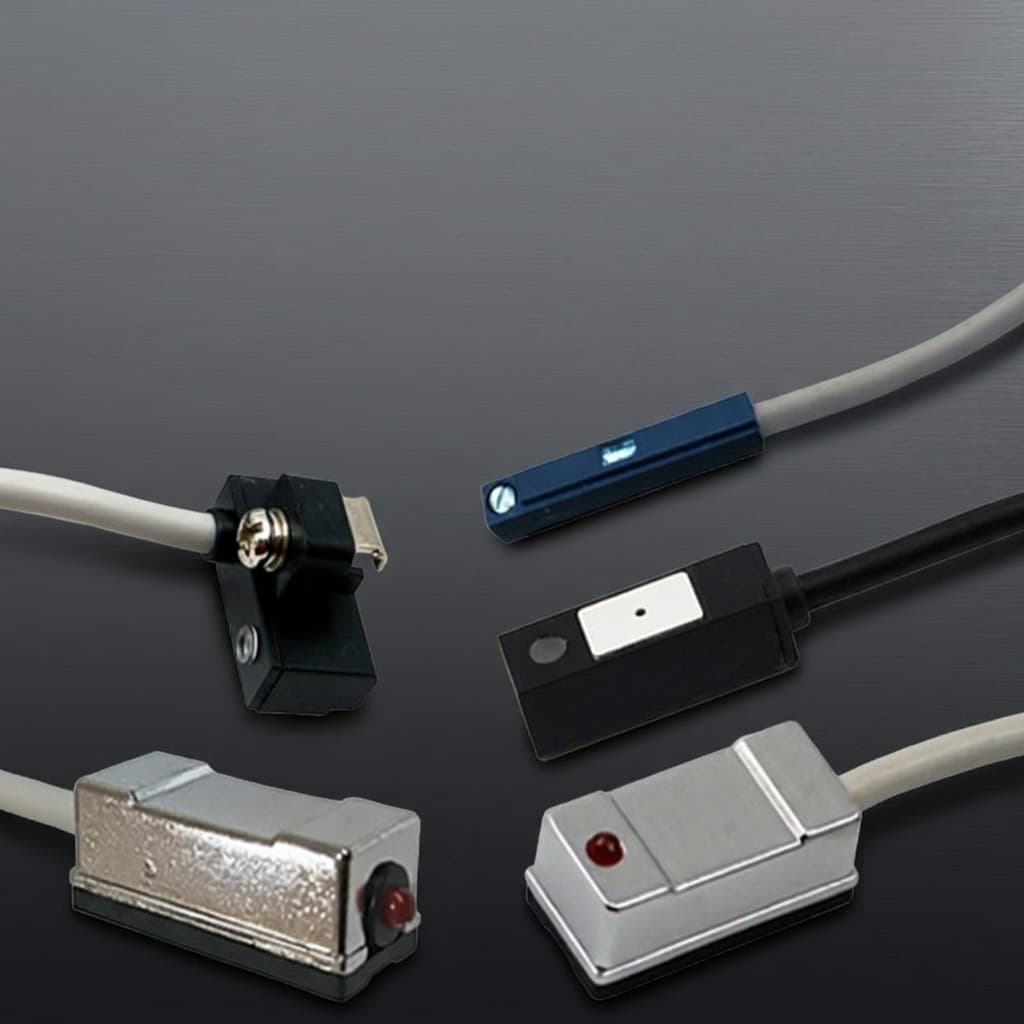

Related magnet and assembly visuals selected by application filename match. Confirm final fit through buyer-side fixture validation.

Yes. Please share piston geometry, sensor model, wall distance, and retention method for review.

Yes. Carrier-mounted assemblies can improve repeatability and reduce assembly handling risk.

Inquiry Email

Include drawing, dimensions, material, coating, magnetization, quantity, and delivery location.

Instant Chat

+86 18857971991

Direct channel for RFQ details and engineering clarification.

Application Evaluation Matrix

Evaluation Metric	Typical Range	Buyer Relevance
Sensing distance through cylinder wall	Defined by cylinder and sensor combination	The magnet must actuate the external sensor through the mechanical stack-up.
Retention durability	Project-defined cycle and environment	Loose or shifted magnets cause intermittent cylinder position feedback.
Polarity direction	Drawing-defined orientation	Cylinder sensors require the magnetic field to reach the switch in the expected direction.

RFQ Preparation Checklist

Cylinder type, piston geometry, sensor model, and wall distance

Magnet shape, dimensions, material, coating, and magnetization direction

Retention method, carrier material, and operating temperature

Vibration, lubricant, pressure-cycle, and corrosion exposure

Sample quantity, annual volume, and inspection requirements
