Custom magnets for Hall effect position, proximity, speed, and switching sensors, with OEM support for geometry, tolerance, coating, and magnetic orientation.

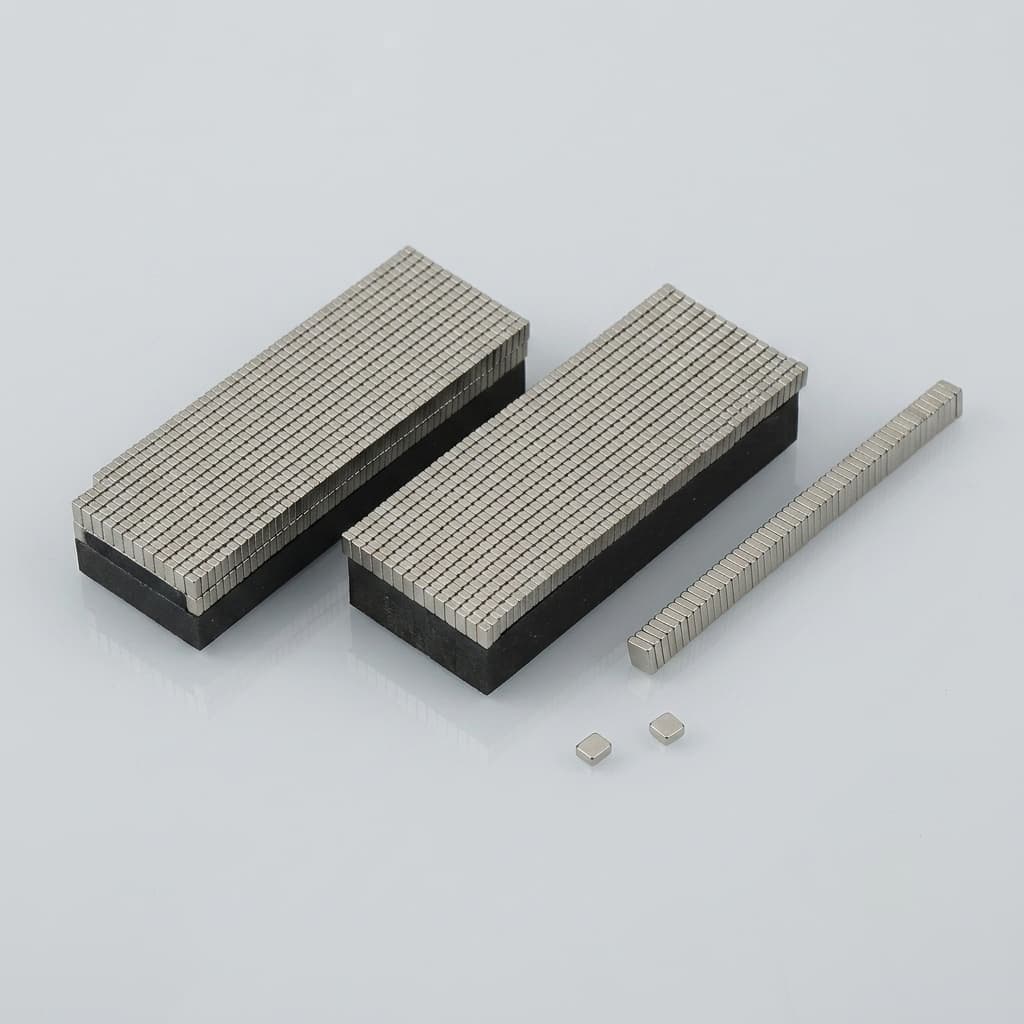

Hall Effect Sensor Magnets reference visual for buyer-side RFQ and sample validation.
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Material selection | NdFeB, SmCo, ferrite, or AlNiCo by application | Material choice controls signal strength, temperature stability, corrosion strategy, and cost. |
| Magnetization direction | Axial, diametric, radial, or custom pattern | The wrong orientation can pass dimensional checks while failing the sensor output window. |
| Dimensional tolerance | Project-defined, tightened where the air gap is sensitive | Small dimensional drift can change switching distance in compact sensor assemblies. |
Use gaussmeter mapping as a screening step, then confirm sensor output at the assembled air gap.
Review temperature, corrosion, vibration, adjacent metal, coating limits, and demagnetization margin.
Request inspection records, C of C, RoHS/REACH-style files, or PPAP-ready evidence only when the project requires it.
Automotive, medical, aerospace, and other high-reliability programs should treat page data as sourcing guidance. Final approval depends on buyer-specific testing, documentation scope, and application validation.
Matched product visuals selected from the current sensor magnet image library by filename and topic fit. Use them as RFQ discussion references, not as final drawing approval.
Yes. Share the sensor IC, air gap target, and space envelope so we can recommend a starting geometry for prototype review.
Yes. We can review axial, diametric, radial, and multipole requirements based on the drawing and application.
Inquiry Email
Include drawing, dimensions, material, coating, magnetization, quantity, and delivery location.
