Factory support for magnets integrated into carriers, plastic housings, metal parts, floats, shafts, and sensor modules where assembly orientation matters.
Custom Magnetic Assemblies reference visual for buyer-side RFQ and sample validation.
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Assembly retention method | Adhesive, press-fit, overmold, fixture, or mechanical lock | Retention choice affects durability, magnetic alignment, tooling, and unit cost. |
| Polarity datum | Drawing-defined reference surface or fixture feature | Subassemblies fail when the magnet is physically present but magnetically misaligned. |
| Inspection scope | Dimensions, polarity, pull force, or magnetic output by agreement | Clear inspection scope prevents quote ambiguity and acceptance disputes. |
Use gaussmeter mapping as a screening step, then confirm sensor output at the assembled air gap.
Review temperature, corrosion, vibration, adjacent metal, coating limits, and demagnetization margin.
Request inspection records, C of C, RoHS/REACH-style files, or PPAP-ready evidence only when the project requires it.
Automotive, medical, aerospace, and other high-reliability programs should treat page data as sourcing guidance. Final approval depends on buyer-specific testing, documentation scope, and application validation.

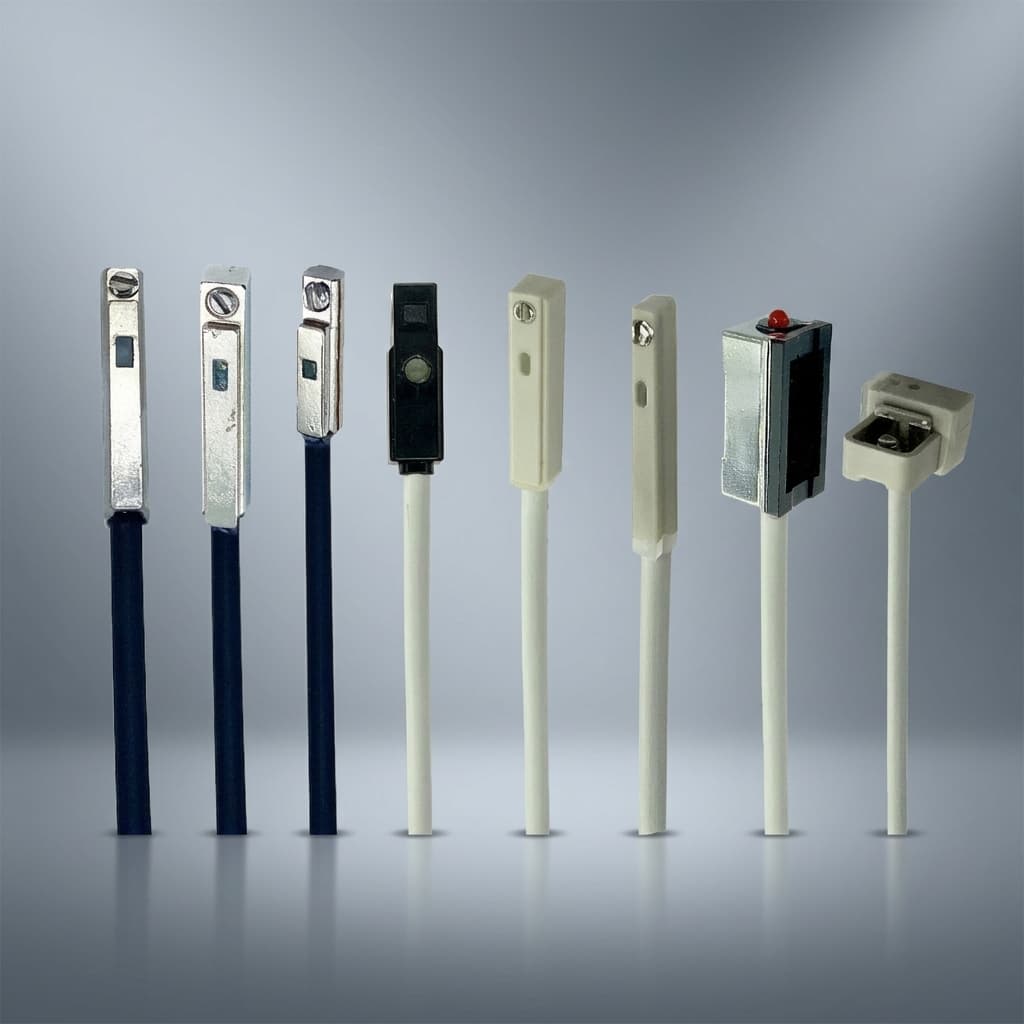

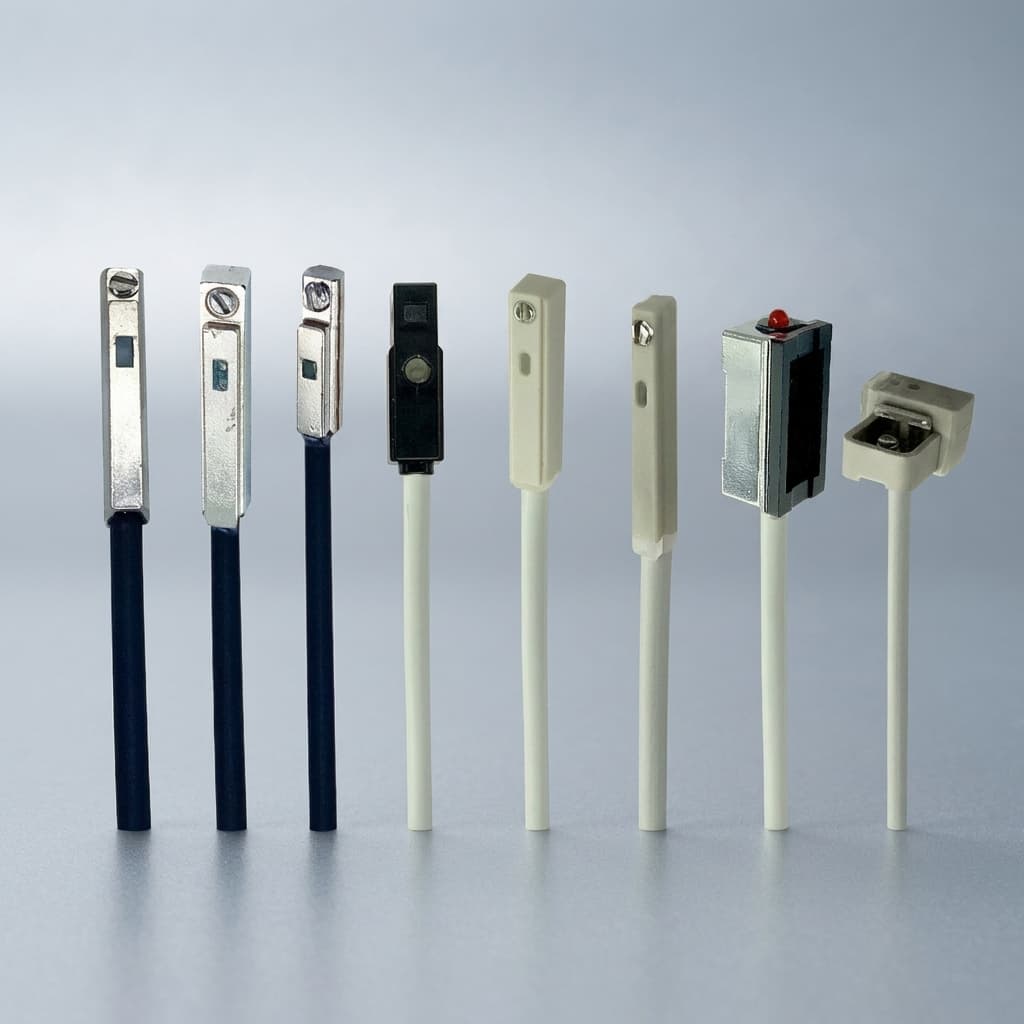

Matched product visuals selected from the current sensor magnet image library by filename and topic fit. Use them as RFQ discussion references, not as final drawing approval.
Yes. Send the assembly drawing, material details, magnetic datum, and expected inspection points.
Yes. OEM packaging and labeling can be discussed as part of the RFQ and production plan.
Inquiry Email
Include drawing, dimensions, material, coating, magnetization, quantity, and delivery location.
