Diametrically magnetized cylinders, discs, and rings for rotary angle sensing, level sensors, and compact magnetic position systems.

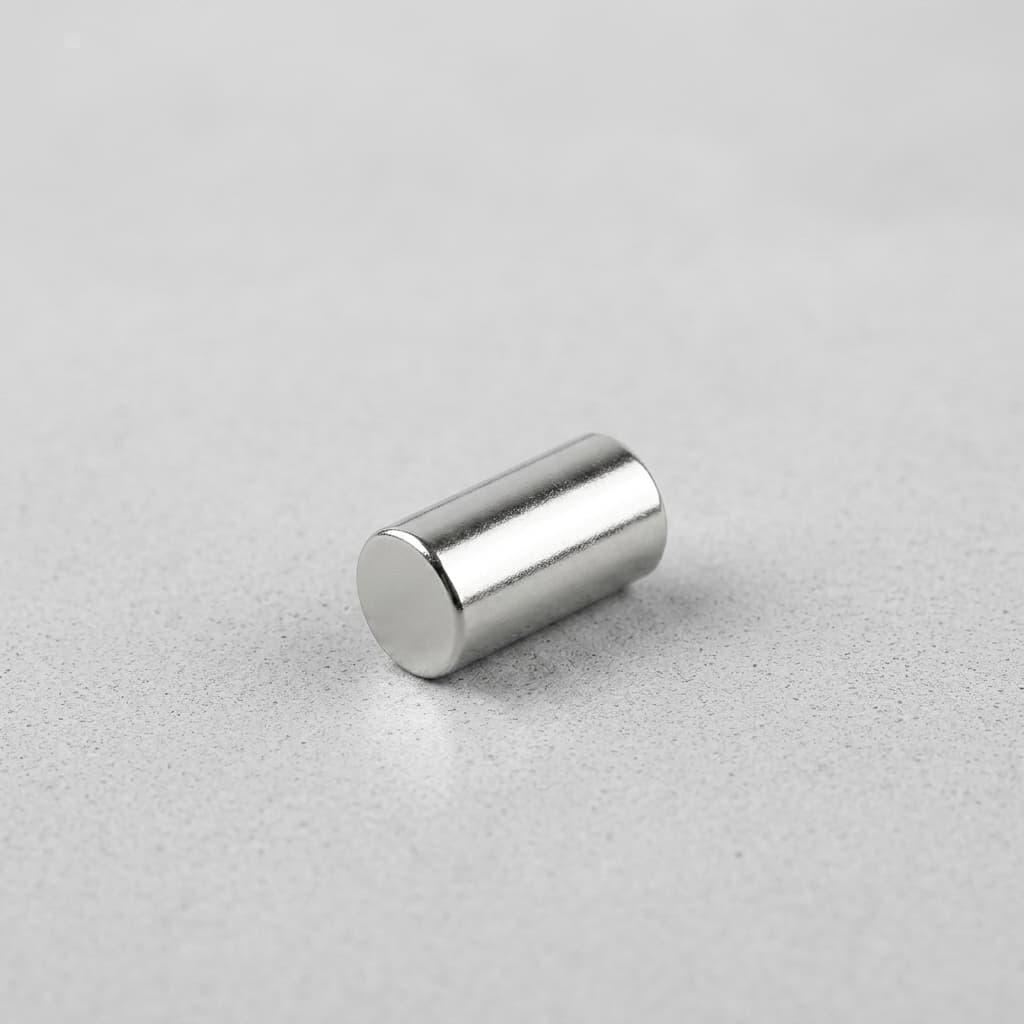

Diametric Sensor Magnets reference visual for buyer-side RFQ and sample validation.
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Diametric axis control | Marked or fixture-controlled by agreement | Angle-sensing assemblies depend on consistent magnetic axis orientation. |
| Geometry ratio | Project-defined diameter and length | Geometry affects field shape, usable air gap, and sensor output smoothness. |
| Temperature stability | Material selected by operating environment | Magnetic output can shift across temperature if material selection is wrong. |
Use gaussmeter mapping as a screening step, then confirm sensor output at the assembled air gap.
Review temperature, corrosion, vibration, adjacent metal, coating limits, and demagnetization margin.
Request inspection records, C of C, RoHS/REACH-style files, or PPAP-ready evidence only when the project requires it.
Automotive, medical, aerospace, and other high-reliability programs should treat page data as sourcing guidance. Final approval depends on buyer-specific testing, documentation scope, and application validation.
Matched product visuals selected from the current sensor magnet image library by filename and topic fit. Use them as RFQ discussion references, not as final drawing approval.
Yes. Please include the diametric axis, tolerance, material, coating, and any marking requirement.
Yes. We can help review candidate sizes and provide samples for buyer-side validation.
Inquiry Email
Include drawing, dimensions, material, coating, magnetization, quantity, and delivery location.
