Overmolded and Carrier-Mounted Magnets

Engineering and RFQ support for magnets mounted into plastic, metal, or composite carriers, including overmolding and insert-style assembly paths.

Best Fit For:Best for OEM teams that need magnets delivered in a carrier or housing instead of as loose parts.

Overmolded and Carrier-Mounted Magnets capability reference for OEM RFQ and production planning.

Capability Highlights

Review process temperature, pressure, adhesive, and carrier material compatibility
Prevent magnet shift, cracking, coating damage, or polarity confusion during molding or insertion
Define fixtures and reference surfaces for repeatable magnetic orientation
Align sample validation with the buyer-side assembly and environmental test

Program Metric	Typical Range	Procurement Value
Process compatibility	Defined by molding, insert, or bonding method	Heat, pressure, and chemicals can affect coating, retention, and magnetic properties.
Orientation control	Fixture-defined polarity and datum	Carrier-mounted magnets must be correct physically and magnetically.
Tooling maturity	Prototype, pilot, or production tooling	Tooling decisions should follow confirmed geometry and validation results.

Magnet coating damaged during processing: Review coating, process temperature, pressure, and handling before pilot release.
Carrier tolerance changes sensor output: Validate the complete carrier assembly, not only loose magnet samples.

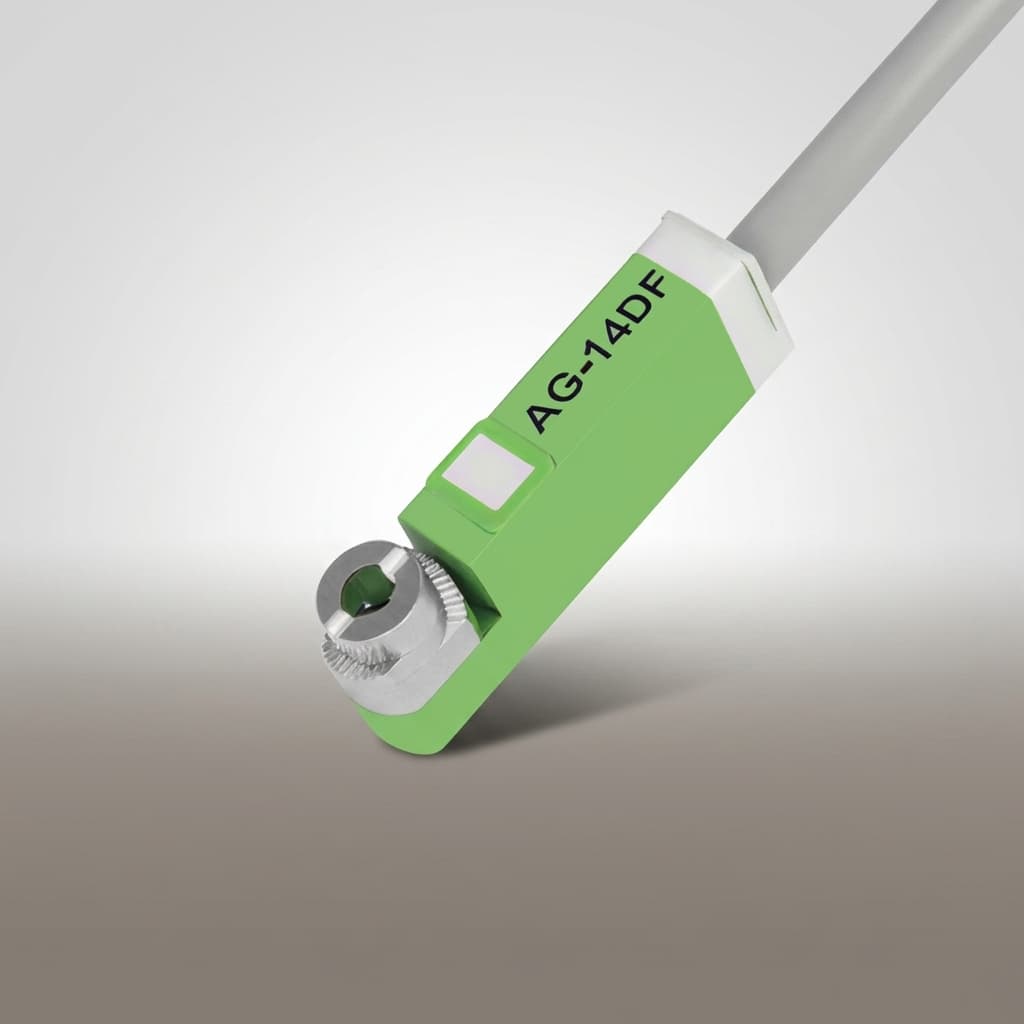

Visual references selected by OEM capability fit. Final manufacturing scope should be frozen with drawings, datum, and inspection requirements.

Yes. The best RFQ includes both the magnet drawing and carrier drawing with process details.

Yes. The recommendation depends on volume, environment, tolerance, material, and retention needs.

Inquiry Email

Include drawing, dimensions, material, coating, magnetization, quantity, and delivery location.

Instant Chat

+86 18857971991

Direct channel for RFQ details and engineering clarification.

Execution Focus

Review process temperature, pressure, adhesive, and carrier material compatibility

Prevent magnet shift, cracking, coating damage, or polarity confusion during molding or insertion

Define fixtures and reference surfaces for repeatable magnetic orientation

Align sample validation with the buyer-side assembly and environmental test

Program Evaluation Matrix

Program Metric	Typical Range	Procurement Value
Process compatibility	Defined by molding, insert, or bonding method	Heat, pressure, and chemicals can affect coating, retention, and magnetic properties.
Orientation control	Fixture-defined polarity and datum	Carrier-mounted magnets must be correct physically and magnetically.
Tooling maturity	Prototype, pilot, or production tooling	Tooling decisions should follow confirmed geometry and validation results.
